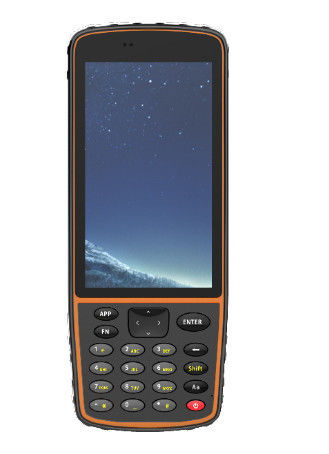

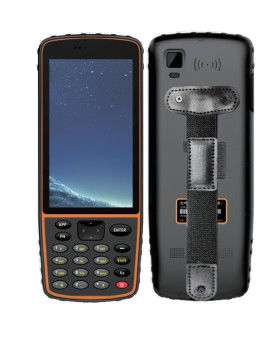

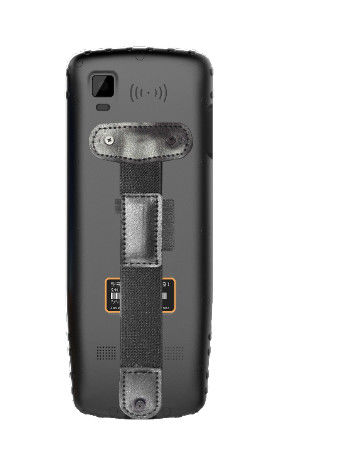

16GB Integrated Ublox GPS Handheld Data Terminal 5.5 Inch 2G

Minimum Order Quantity : 100PCS Packaging Details : carton
Delivery Time : 30-45 Days Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability : 5000PCS/Year
Place of Origin: Shanghai, China Brand Name: Zoomsmart
Certification: CE Model Number: A5503

Detail Information

LCD: 5.5" 1280*720 500nits Touch Panel: Capacitive
Size: 192.5*79.8*14.5mm Weight: 350g
Work Temperature: -20℃~60℃ CPU: Qualcomm MSM8940 Octa Core 1.4GHz
OS: Android 8.1 NFC: Y
T Card: Y GPS: Y
High Light:

GPS Handheld Data Terminal

,

5.5in handheld data terminal

,

2G rugged handheld terminal

Product Description

Industrial Rugged Android PDA, 5.5-inch / 2GB+16GB / IP67 Fully Waterproof / Integrated Ublox GPS, for Data Collection



Product information:



Upgraded High-end Configuration: Thanks to upgraded to Android 8.1 OS,this Android Smartphone is more compatible and safer. From equipped with Qualcomm MSM8940 Octa-core CPU to expanding the RAM &ROM (2+16GB), all to improve software running speed and operating experience



Multiple data communication capabilities: Support 4G LTE data, WIFI 802.11(a/b/g/n) dual bands & Bluetooth 4.2 to keep your team always connected. Without worrying about data lossing in the field. An essential production tool for mobile workforce, consultants, engineers, geologists, field workers, maintainance staff, to get jobs done



All-day battery life with 8000mAh battery capacity: Its long-lasting performance of 10 hours ensures you no need to worry your work would be interrupted by power-off anymore



Reliable for the field: Rugged PDAs are designed to withstand 1.2m drops, hard knocks, extreme temperatures, moisture, dust, water, and more. Perfect for people working indoors, outdoors, in extreme or busy environments



Parameter:



Catalog Detail
Project No. A5503
LCD 5.5" 1280*720 500nits
Size 221.5*87*19.7mm
Weight 350g
Drop Test 1.2m
Waterproof IP67
Working Temperature -20℃~60℃
Storage Tempetature -30℃~70℃
CPU Qualcomm MSM8940 Octa Core 1.4GHz
OS Android 8.1
RAM 2GB
Flash 16GB
Rear Camera 8M
WIFI 802.11 a/b/g/n/ac, 2.4GHz/5GHz
SIM Card Dual Sim/Dual standby
Bluetooth BT4.2
T Card Y
USB Type C
Battery 8000mAH
Fast Charge QC3.0
NFC Y
G Sensor Y
Light Sensor Y
Vibrator Y
GNSS Y
Keypad Power, keypad
Network

GSM:850/900/1800/1900
EVDO:BC0
WCDMA: B1/B2/B5/B8
TDD-LTE: Band38/Band39/Band40/Band41
FDD-LTE: Band1/Band2/Band3/band4/band5/Band7/

band8/band17/band20/band28



16GB Integrated Ublox GPS Handheld Data Terminal 5.5 Inch 2G 0



FAQ



Q1: Which size do you provide for the rugged tablet?
A1: Size: 5” 5.5” 6” 8” 10”



Q2: Can you provide OEM/ODM?
A2: ZoomSmart is a professional mobile ODM/OEM company integrating R&D, production, sales and after-sales service in China.



Q3: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch?
A3: All are available, pls confirm when you order to us.
